The NUNC™ Coverglass Optical Bottom 96 Well Plates have the same quality design of existing NUNC™️ well products, plus an optically clear polystyrene plate bottom. This clear base permits microscopic viewing and reading of well

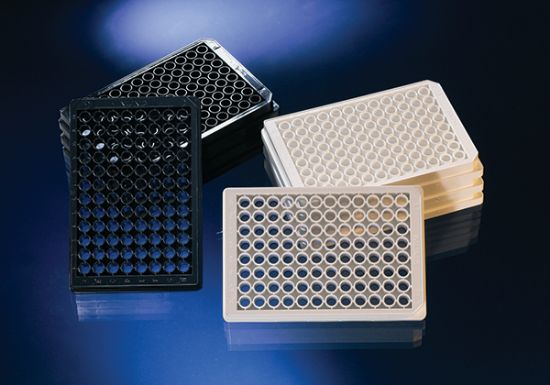

96 Well Optical Bottom Plates Polystyrene/Coverglass
Sterile, External dimensions 128 x 86 mm, NUNC# 265 300.
Features
- Black upper structure with #1.5 borosilicate coverglass
- Minimum light scatter and low autofluorescence
- Optical clarity for viewing well contents
- Flat bottom well geometry for plate reader access
- Footprint compatible with standard equipment and automated systems
- CC2™ surface modification closely mimics Poly-D-Lysine and it superior for attachment and growth of fastidious cells
- Non-treated plates are optimized for fluorescence
- Sterile for cell culture
- Working range: 50-200 µl/well
Plate total height |
14.9 mm |
H2 Vertical distance from inside well bottom to resting plane. |
2.5 mm |
H3 Inside depth of well |
12.2 mm |
H4 Coverglass thickness |
0.19 mm |
H5 Height of flange |
6.2 mm |
Well diameter |
6.5 mm |
Total Vol. µl/well |
400 |
Black upper structure with #1.5 borosilicate coverglass. Sterile without lid.
