Cryo Transfer System for Environmentally Sensitive Samples
Quick Overview

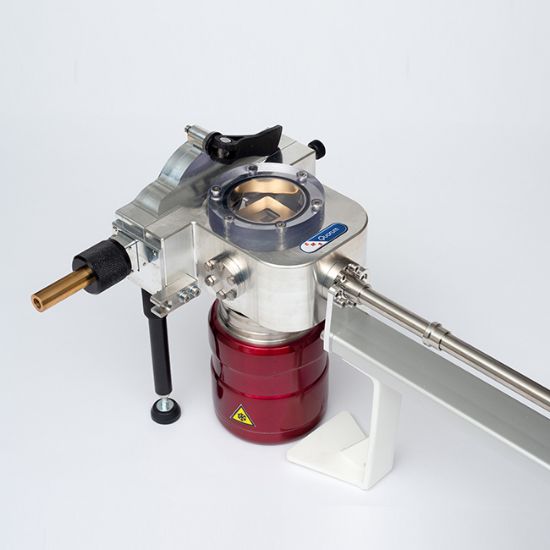

The Actively Cooled Transfer (ACT) is specifically designed for transferring delicate samples under both cryogenic conditions & high vacuum or at ambient temperatures under inert atmosphere. Its unique features include a built-in cold stage and an anti-contaminator, ensuring that sample integrity is maintained during the transfer process. The ACT is equipped with the solid Magdrive transfer rod and an attached cooling dewar, offering a highly accessible and portable solution for your needs.
Key Features
- Compatible with most makes and models of SEM and FIB-SEM
- Can be interfaced with other devices, such as Ion Mills
- Cold stage cooled to -160 °C
- Anti-contaminator cooled to -180 °C
- Glovebox interfacing required for inert gas transfer
- Transferring materials sensitive to atmosphere, such as Battery and Fuel Cells
- Operates in conjunction with PP3010 and PP3006
- Transfer in high vacuum in the region of 10-6 mbar
Specifications
Weight |
Approximately 5 kg |
Overall Dimensions |
W = 300 mm, L = 881 mm, D = 303 mm |
Stage Temperature |
≤ -160°C (in 30 mins) |
Vacuum Level |
Transfer in high vacuum in the region of 10-6 mbar |
Operating Pressure when Interfacing with Glovebox |
≤ 1 bar. |
Warranty |
1-year warranty, with an extended warranty offer upon request |
Further Information |
The chart of Pressure vs Time (pump down time), the chart of Temperature (Stage and Anti-contaminator) vs Time and EDS results of Oxygen reduction using ACT for sample transfer are upon request. |
Configuration |
Interfacing required, please contact us for more information |
Recommended Workflows
- Glovebox to PP3006
- Glovebox to PP3010 Prep Chamber
- Glovebox to Ion Mill with Cryogenic Stage
- Ion Mill with Cryogenic Stage to PP3006
- Ion Mill with Cryogenic Stage to PP3010 Prep Chamber
All workflows can transfer in both directions
These products are for Research Use Only.
