Nickel Parallel Bar Grids, 4-Quadrant
3.05 mm diameter, 0.7 mil (18µm) thickness
Material: Nickel (Ni)
GVPB Parallel Bar Grids

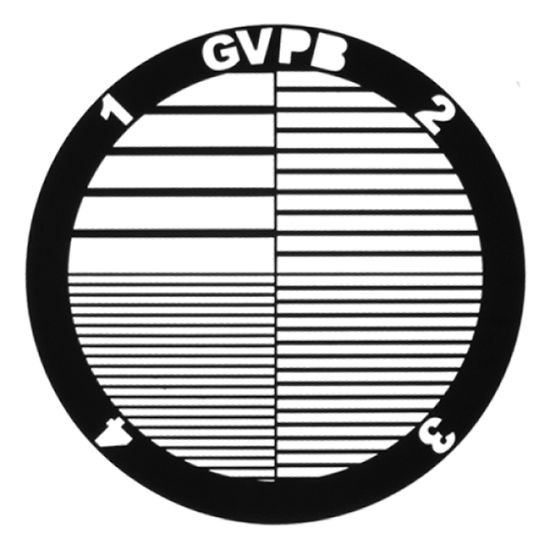

This new grid provides four levels of parallel bar specimen support.Quadrants are separated by crenelated bars. Larger areas may be viewed at lower magnification depending on the appropriate specimen thickness.
Grid Specifications, Type GVPB
Quadrant |
1 |
2 |
3 |
4 |
Lines/Inch |
~ 100 |
~ 200 |
~ 300 |
~ 400 |
Pitch (± 0.5 µ) |
~ 250 µm |
~ 120 µm |
~ 83 µm |
~ 62 µm |
Bar Width |
~ 65 µm |
~ 45 µm |
~ 40 µm |
~ 35 µm |
Hole Width |
~ 185 µm |
~ 80 µm |
~ 43 µm |
~ 27 µm |
SKU:
G-GVPB-Ni
Pack:
100 Vial
Please request a quote for this item. Click the "Q" graphic or "Add to Quote".
